The Comprehensive Guide to Chemical Etching: Revolutionizing Modern Manufacturing

1. Introduction to Chemical Etching

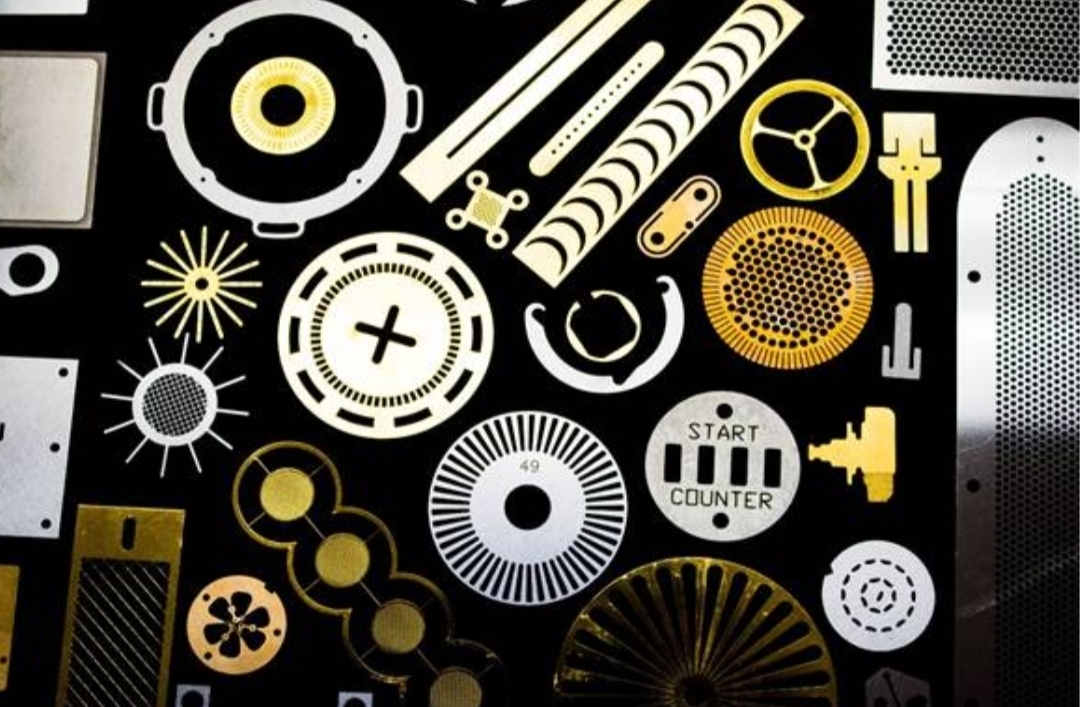

Chemical etching, or photochemical machining (PCM), is a subtractive manufacturing process that uses chemical solutions to remove material from metal surfaces to create intricate designs and patterns. This technique is particularly significant in modern manufacturing because it produces exact and complex parts. Chemical etching manufacturers offer a versatile solution for various applications, from aerospace components to intricate jewelry designs.

The Process of Chemical Etching Step by Step

How It Works

Chemical etching involves using a photoresist to mask specific areas of a metal sheet and then exposing it to a chemical etchant, which dissolves the exposed metal. This process allows for the creation of intricate and complex designs, often challenging to achieve with traditional machining methods.

Step 1: Design and Artwork Preparation

The first step in chemical etching is to create a digital design of the desired pattern or component. This design is commonly made with computer-aided design (CAD) tools. After finalizing the design, it is copied onto a see-through sheet called artwork, which acts as a mask for the metal surface.

Visuals: Image of a CAD design being prepared.

Step 2: Material Selection and Cleaning

The choice of material is crucial for the success of the etching process. Common materials include stainless steel, copper, brass, and various alloys. The selected metal sheet is thoroughly cleaned to remove any contaminants or oxidation that could interfere with the chemical reaction.

Visuals: Image of different metal sheets being cleaned.

Step 3: Photoresist Application

A light-sensitive photoresist coating is applied uniformly to both sides of the cleaned metal sheet. This coating will harden upon exposure to ultraviolet (UV) light, protecting the areas of the metal that should remain intact.

Visuals: Image of a metal sheet being coated with photoresist.

Step 4: Exposure to UV Light

The artwork (transparent film with the design) is carefully aligned and placed over the coated metal sheet. The assembly is then exposed to UV light. The UV light passes through the transparent areas of the artwork, hardening the photoresist in those regions. The areas covered by the design remain unexposed and will be etched away.

Visuals: Image of the metal sheet and artwork exposed to UV light.

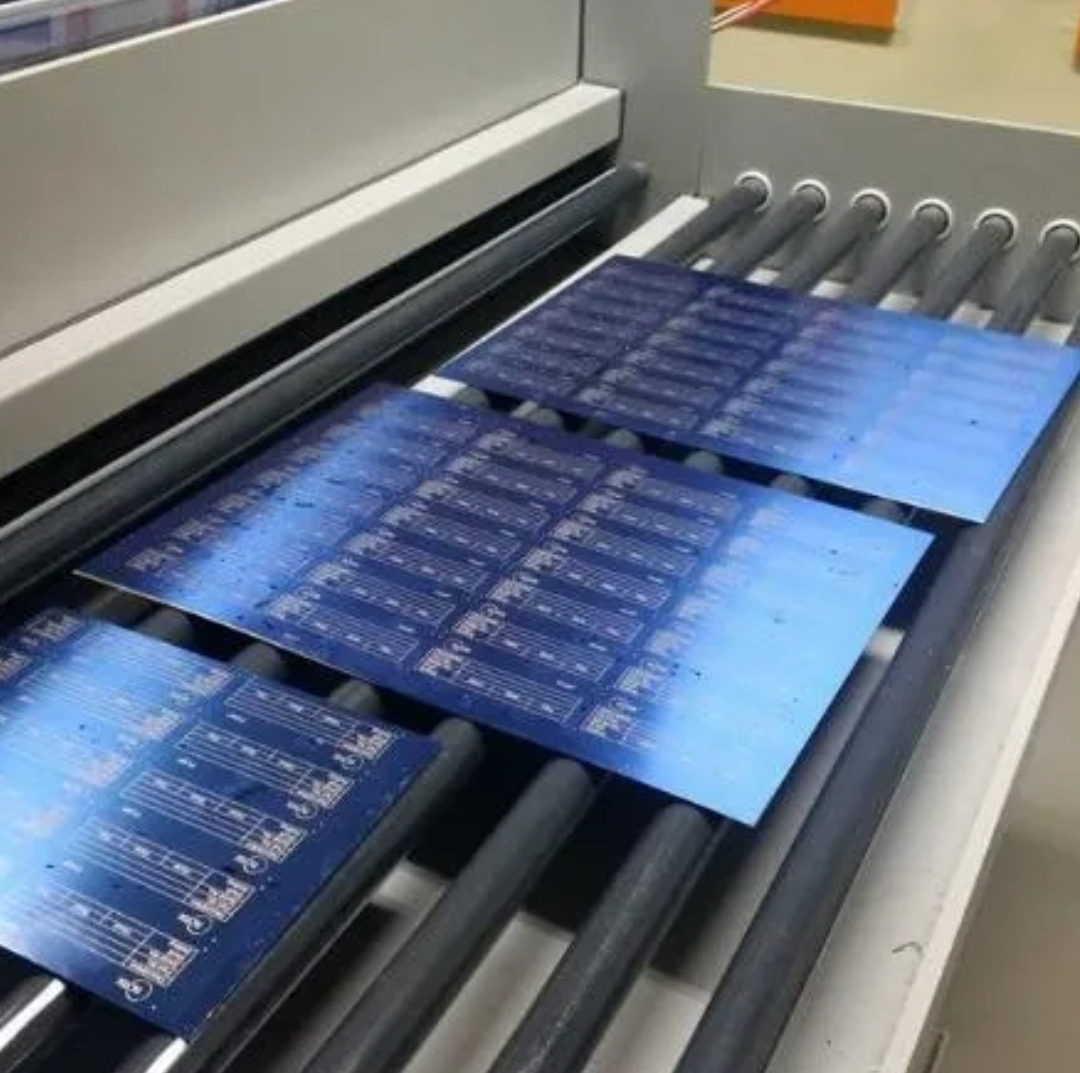

Step 5: Develop the Photoresist

After exposure, the metal sheet develops, where a chemical solution removes the unexposed photoresist, revealing the bare metal in those areas. The hardened photoresist remains intact, protecting the design from the etching solution.

Visuals: Image showing the development of photoresist with the design visible

Step 6: Etching

The developed metal sheet is immersed in an etching solution, typically Ferric Chloride or a similar etchant. The solution reacts with the exposed metal, dissolving it away and creating the desired pattern. The duration of the etching process is carefully controlled to achieve the required depth and precision.

Visuals: Image of a metal sheet being immersed in an etching solution.

Step 7: Stripping the Remaining Photoresist

Once the etching is complete, the remaining photoresist is stripped away using a chemical stripper, revealing the final etched pattern or component. The result is a precise and intricate design that meets the exact specifications of the original CAD drawing.

Visuals: Image of the final etched metal sheet with the remaining photoresist being stripped away.

Step 8: Inspection and Quality Control

The etched components undergo thorough inspection and quality control checks to meet the required standards and tolerances. Any defects or anomalies are identified and addressed before the final product is approved.

Visuals: Image showing the inspection process with magnification tools.

2. What are the Advantages of Chemical Etching?

Precision

One of the primary benefits of chemical etching is its unparalleled precision. The process allows for the creation of intricate and detailed designs with tolerances as tight as ±0.01mm. This level of accuracy is crucial for industries such as aerospace, where even the most minor deviation can have significant consequences.

Cost-Effectiveness

Chemical etching is a cost-effective alternative to traditional manufacturing methods, especially for small to medium-production runs. Unlike CNC machining or laser cutting, chemical etching does not require expensive tooling or die setups, making it ideal for prototyping and low-volume production.

Design Flexibility

The chemical etching process offers exceptional design flexibility, enabling manufacturers to create complex geometries that would be difficult or impossible to achieve with other methods. This flexibility is particularly beneficial for engineers and designers working on innovative projects that require custom parts with unique specifications.

3. What are Applications in Manufacturing?

Chemical etching's versatility and precision make it a preferred method for manufacturing parts in various industries.

Aerospace Industry

In the aerospace industry, weight reduction and precision are factors. Chemical etching is a solution in this sector;

Jet Engine Parts: Chemical etching creates precise components for jet engines, such as turbine blades and fuel nozzles, improving performance and fuel efficiency.

Aerospace Electronics: The technology is also employed to create intricate electronic connectors and sensors, which are essential for the sophisticated avionics systems used in modern aircraft.

Automotive Industry

Chemical etching finds numerous applications in the automotive sector, contributing to the production of high-performance and reliable components:

Engine Components: This technique crafts detailed components for internal combustion engines, such as gaskets, fuel injectors, and heat exchangers, guaranteeing peak performance and effectiveness.

Sensors and Connectors: Chemical etching is essential for producing sensors and connectors in modern vehicles' complex electronic systems, enhancing safety and functionality.

Electronics Industry

The electronics industry demands exact and miniaturized components. Chemical etching plays a pivotal role in manufacturing:

Circuit Boards: Chemical etching creates complex circuit patterns on printed circuit boards (PCBs). This process provides high precision and reliability for intricate electronic circuits.

EMI/RFI Shielding: Metal shields for electromagnetic interference (EMI) and radio-frequency interference (RFI) are often produced using chemical etching, effectively protecting sensitive electronic components.

4. Future Trends and Innovations

Chemical etching continues to evolve, with new technologies and innovations being introduced regularly. Some of the recent advancements in the field include:

Digital Etching Technologies

Digital etching technologies are set to revolutionize the chemical etching industry. They allow for greater control and precision, enabling manufacturers to produce even more intricate designs with greater accuracy.

Sustainable Practices

Sustainability is becoming increasingly important in all manufacturing sectors, and chemical etching is no exception. Innovations in recycling and waste management and the development of greener etching solutions are helping the industry move towards more sustainable practices.

5. Choosing the Right Chemical Etching Manufacturer

Selecting the proper chemical etching manufacturer is crucial for ensuring high-quality results. Here are some key factors to consider.

Industry Experience

When selecting a chemical etching manufacturing partner, consider their industry expertise. Opting for a company with a proven track record of creating precise components using chemical etching techniques is advisable. An established manufacturer will possess the skills and know-how to tackle projects and guarantee that your designs are faithfully transformed into the final product.

Capabilities

Another critical factor to consider is the manufacturer's capabilities and use of technology. Look for a company that invests in state-of-the-art equipment and techniques, such as CAD software, photomasks, and chemical solutions. This will ensure high precision and quality and offer flexibility regarding materials and design complexity.

Quality Control Standards

Quality control is essential in any manufacturing process, and chemical etching is no exception. Choose a manufacturer that follows strict quality control standards and has certifications such as ISO 9001. They have a robust quality control system to ensure their products meet the required standards and tolerances. This can include thorough inspections throughout the production process and post-etching measurements and checks.

Customer Service

Customer support is crucial for a partnership. A reputable manufacturer should communicate effectively and promptly address any questions or worries you may have during manufacturing. They should also offer assistance after the sale, resolving problems that might arise with the end product.

Adequate customer support fosters a productive partnership, trust, and confidence in their services. Choose manufacturers who provide assistance, respond promptly, and maintain communication.

Conclusion

Chemical etching offers numerous benefits, including high precision, cost-effectiveness, and sustainability, making it an excellent choice for various applications across multiple industries. As manufacturing engineers, product designers, and metal fabricators, understanding the potential of chemical etching can open up new possibilities for innovation and efficiency in your projects.

Ready to explore how chemical etching can benefit your business? Contact a reputable chemical etching manufacturer today and take the first step toward superior metal fabrication.

Faqs

Can chemical etching be used for any type of metal or only specific ones?

Chemical etching can be used on various metals, including copper, aluminum, stainless steel, titanium, brass, and nickel alloys. It is best to consult a chemical etching service provider to determine the most suitable methods and materials for a particular metal.

Which is the main chemical used for etching?

The primary substance utilized for the etching process is an acid, like hydrochloric acid or ferric chloride. Other substances, such as hydrogen peroxide and ammonium persulfate, may also be employed depending on the metal being etched. The choice of chemical is determined by the desired outcome and the material being etched. It is essential to follow safety protocols when working with these chemicals to protect workers and the environment.

What are the two types of etching?

The two main types of etching are chemical etching and physical etching. Chemical etching involves using chemicals to selectively remove material from a metal surface, while physical etching involves physically removing material through techniques such as sandblasting or laser ablation. Both methods can achieve high levels of precision and intricacy in the final product.

Why is 37% phosphoric acid used for etching?

Phosphoric acid, at a concentration of 37%, is often chosen for etching due to its safe properties. It is sufficiently acidic to etch metals and milder than harsher acids, like hydrochloric acid. This characteristic makes it easier and safer to work with and discard, all while ensuring top-notch outcomes in the etching procedure.
